Automatic Filling Line for Palletized Drum & IBC Filling

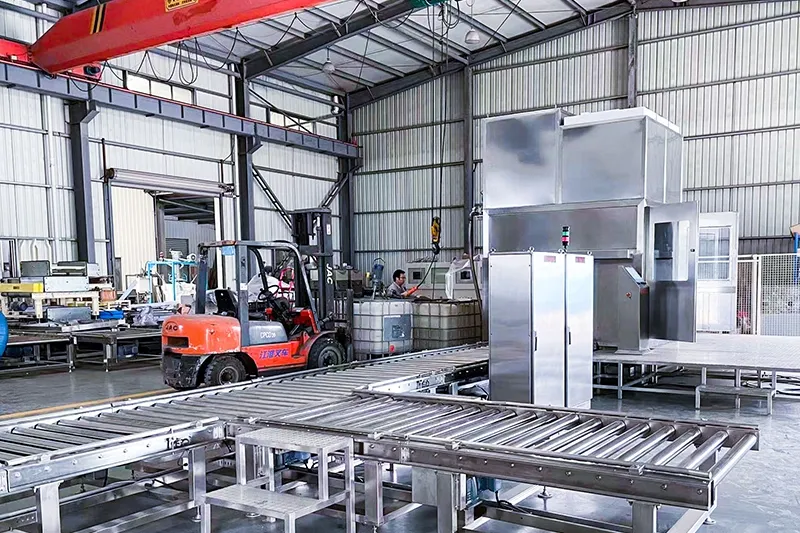

The automatic filling line on pallet and IBCs is designed to achieve a fully automated production process, including empty container storage, automatic container discharge, automatic empty container labeling, automatic alignment and decapping, automatic quantitative filling, automatic alignment and cap tightening, automatic pallet discharge, automatic stretch wrapping or hooding, automatic strapping, and finished pallet conveying out of the production workshop.
- Drum store capacity: customizable (200-400 or more pallets/IBC totes, supporting pallets capable of storing 4×200L drums and IBC totes simultaneously)
- Filling speed: single station 8-10 containers/hour (IBC totes) or 30-35 drums/hour (200L drum), each filling line can be configured with 1-2 stations, each drum storage system can support multiple filling lines simultaneously
- Filling method: gravimetric filling
- Filling accuracy: better than ±0.2% (optimal accuracy 100-200g depending on material properties)
- Conveyor type: linear conveyor

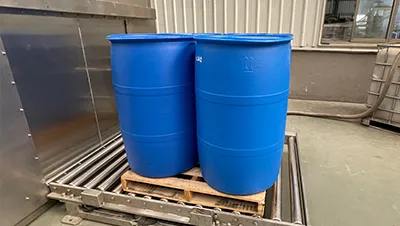

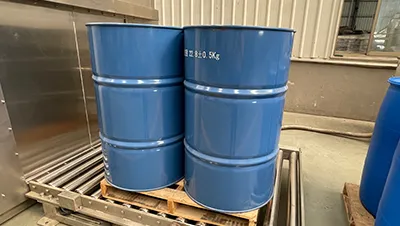

- Container type: 200L standard plastic/steel drum (4 drums placed on a pallet), IBC tote
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- ATEX/EX: applicable
- Equipment dimensions: length is customized according to site layout and empty container buffer requirements
- The automatic filling line can accommodate different pallet types and container formats. Format changeover is achieved by selecting the corresponding recipe via the touch screen interface.
- The automatic filling line integrates world-class electrical components to ensure reliability, featuring Siemens PLC and HMI systems, Schneider low-voltage switchgear, Omron or Sick photoelectric sensors, and Pepperl+Fuchs (P+F) proximity switches.
- Multiple safety measures are integrated throughout the system, including emergency stop buttons, safety switches, interlocking systems, and safety fencing to ensure operation within designated safe zones.

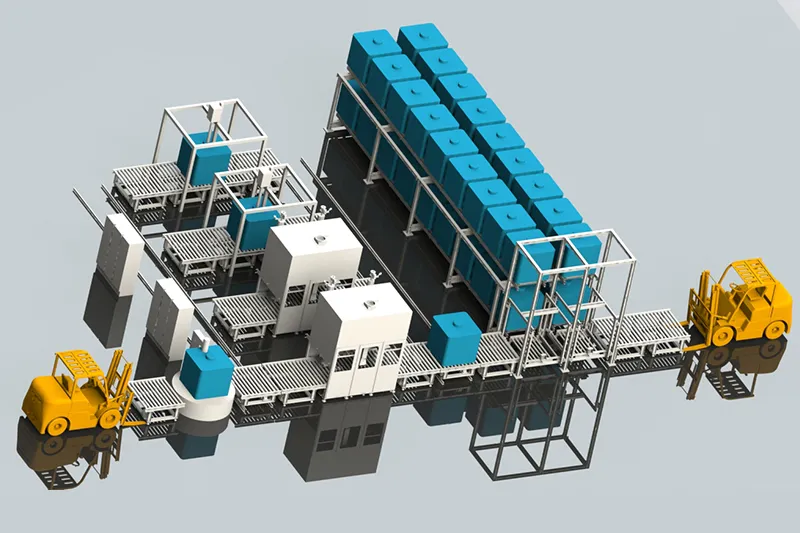

Empty pallet / IBC warehouse, automatic filling machine on pallet and IBCs, stretch wrapper, labeling machine, etc.
-

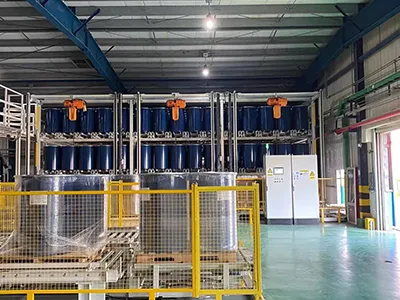

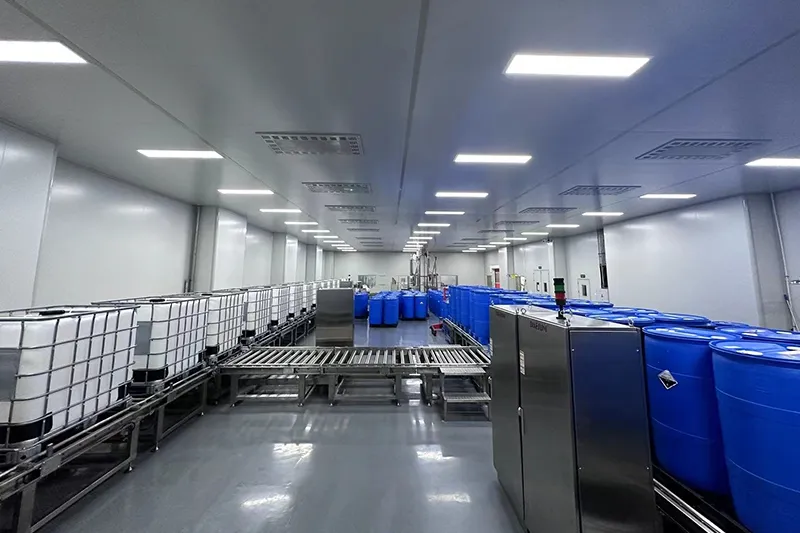

Empty pallet / IBC warehouse -

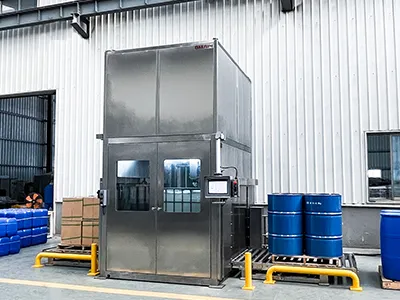

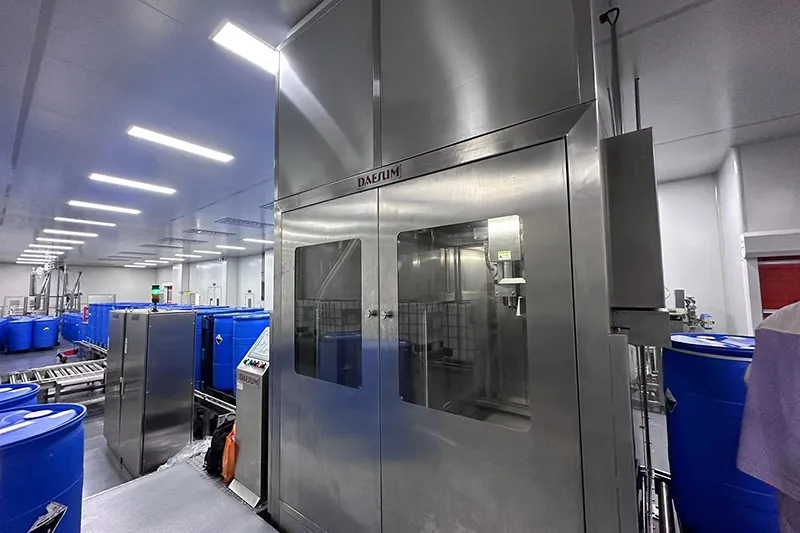

Automatic filling machine -
200L capping machine -

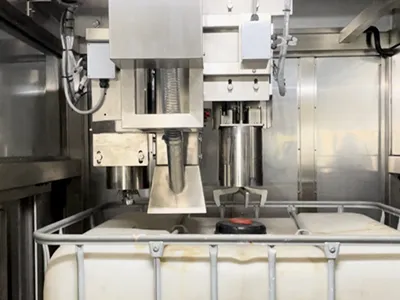

IBC capping machine
The automatic filling line is suitable for industries with high production volumes, reduced labor requirements, strict safety standards, high environmental protection demands, and elevated performance expectations.
Typical applications include fine chemical industries and environments handling high-viscosity materials, toxic and hazardous substances, and flammable or explosive products.
