Automatic Filling Machine for Pails and Jerrycans
(300-700 containers/h)
- Filling range 5-40L
- Container type pails/jerrycans

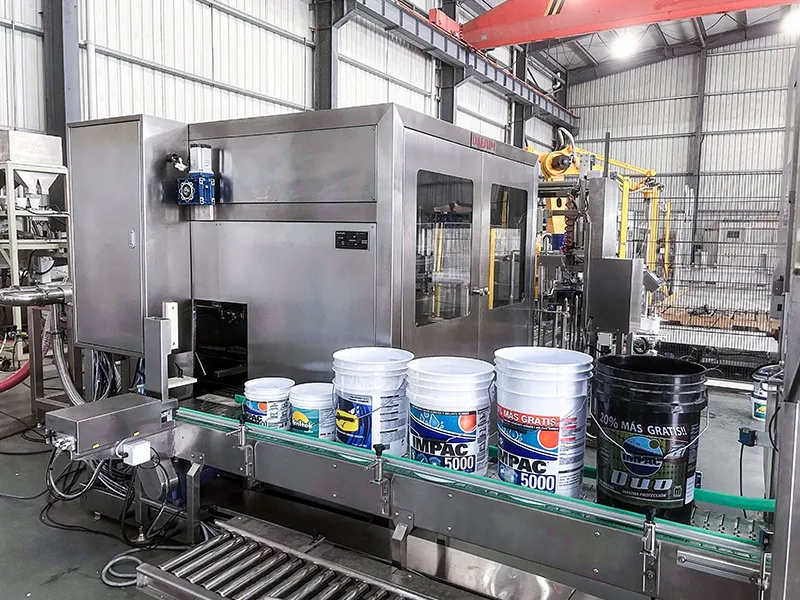

This automatic filling machine achieves a high degree of automation for pail and jerrycan filling. With the exception of manual loading, the whole process is automatic from infeed, quantitative filling, lid/cap sorting and placement, capping, to automatic discharge of filled pails/jerrycans.
The automatic filling machine utilizes mechanical positioning for automatic alignment and can be adjusted to meet various container specifications based on the pails/jerrycans type. Furthermore, the equipment can be configured with a dual-nozzle system to handle two different products simultaneously.
Optional configurations include explosion-proof motors, fume collection hoods, vapor extraction systems, plastic modular belt conveyor, inkjet printers, labeling machines, pallet magazines, and palletizers.
- Filling speed: 300-700 containers/hour (depending on material properties, supply pressure, and container volume)

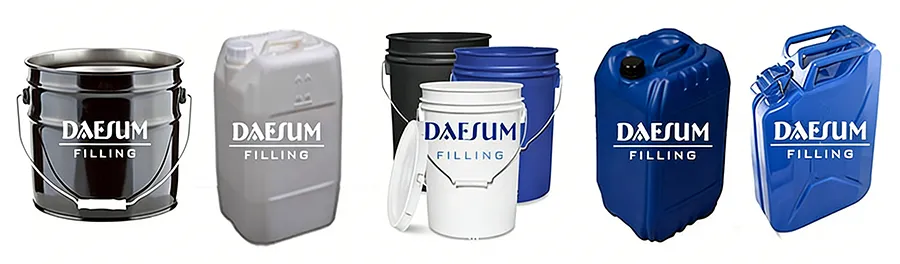

- Container type: pails/jerrycans
- Filling method: gravimetric filling
- Conveyor type: linear conveyor or triple-station conveyor
- Filling range: 5-40L
- Number of filling stations: 4-6
- Max. weighing capacity: 40kg
- Scale interval: 10g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: customized to site layout, height not exceeding 2m (if configured with robotic system and pail destacking unit, height not exceeding 3m)
- Automatic feeding: Yes
- Automatic bunghole positioning: Yes
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: Yes/No (optional)
- Automatic palletizing/wrapping: Yes/No (optional)
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Pneumatic crimper: Optional
- Conveyor system: Optional
- Empty container store warehouse: Optional

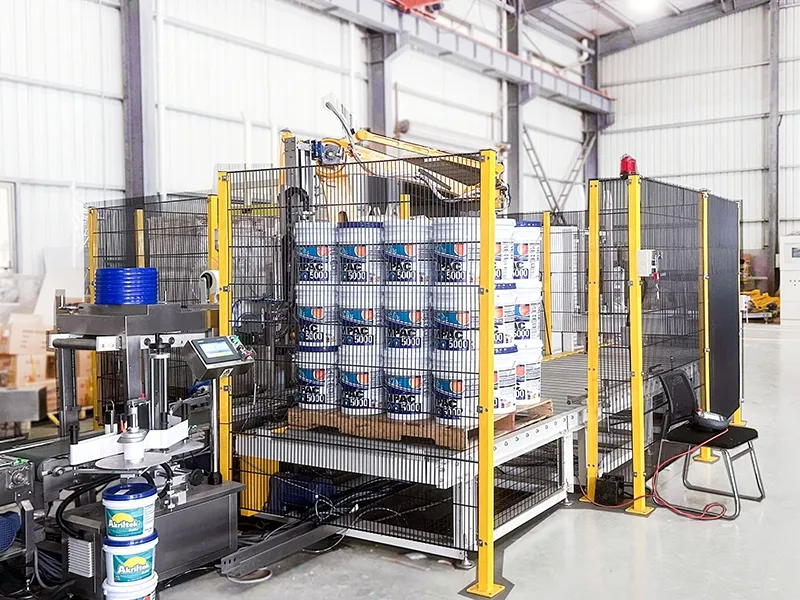

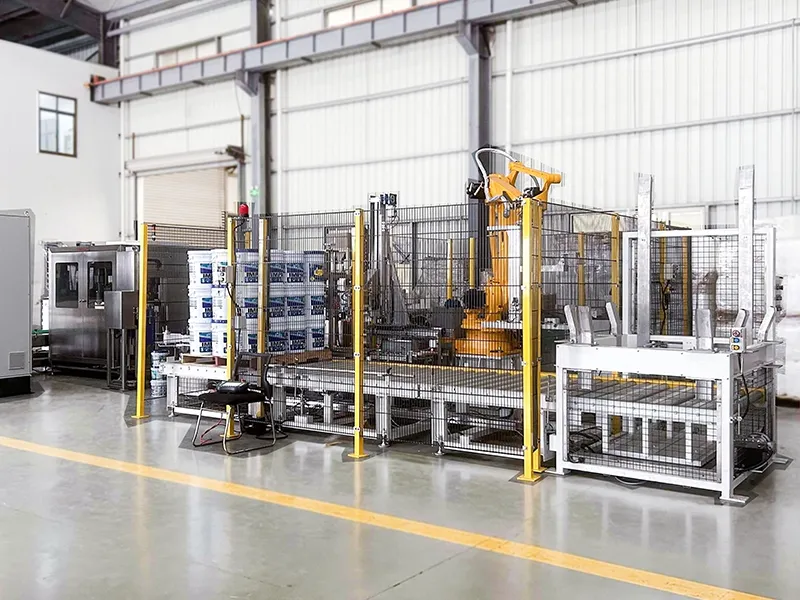

- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
- High degree of automation, significantly reducing labor costs.
- Supports pail sizes from 5L to 40L, allowing for multiple container types on a single machine.
- Typically configured with 4-6 filling stations, achieving production speeds of 300-700 pails per hour.
- Optimized for high-volume production, specifically for toxic, hazardous, and volatile chemical materials.
Specifically engineered for the high-efficiency production requirements of coatings, paints, and other industrial media. The filling machine supports a seamless automated workflow, including automatic alignment, quantitative filling, and automated material handling throughout the production cycle.
