Automatic Filling Machine for Palletized Drums and IBCs
- Filling range 200-1000L
- Container type plastic/steel drum, IBC tote

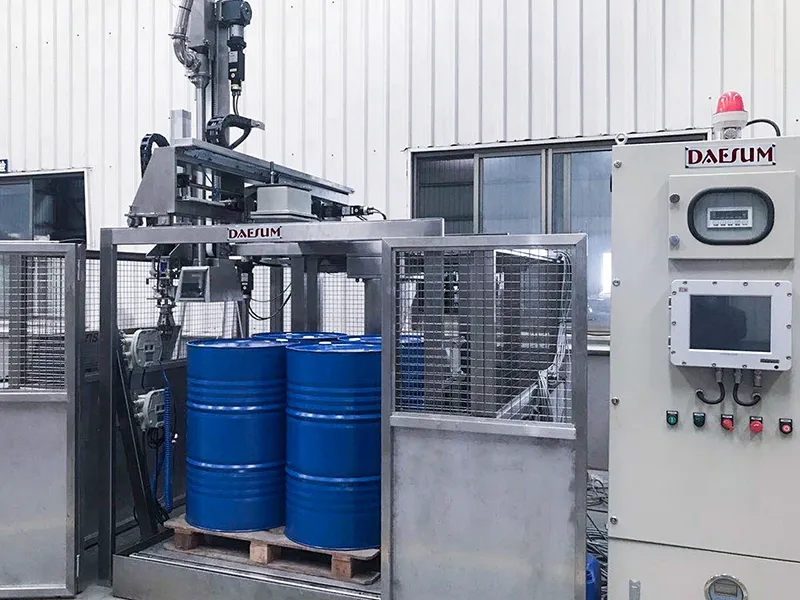

The automatic filling machine on pallet and IBCs achieves a high degree of automation, encompassing forklift-assisted weighing, automatic decapping/lid opening, automatic alignment, automatic quantitative filling, automatic capping/lid pressing, and forklift-assisted unloading.

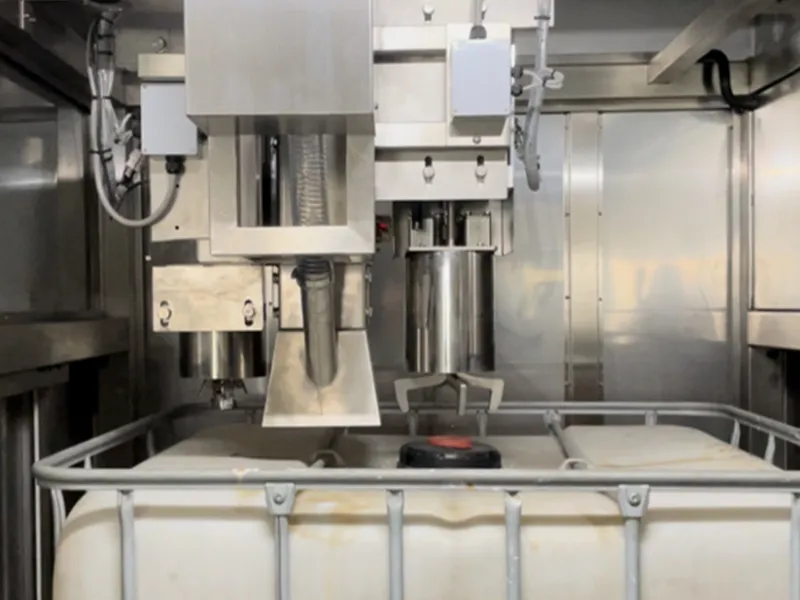

The automatic alignment system offers a choice between vision-guided or mechanical alignment based on the container type, and comes equipped with an integrated capping and capping gripper. When paired with AGVs, this filling machine enables fully unmanned factory operations.
Optional configurations include multiple filling lances, powered roller conveyors, explosion-proof motors, safety guardrails, enclosed filling cabins, and vapor extraction systems.
- Filling speed:
Double station: 70-80 drums/hour (200L per drum), 16-20 containers/hour (IBC)
Single station: 35-40 drums/hour (200L per drum), 8-10 containers/hour (IBC) - Depending on material properties and supply pressure
- Filling range: 200-1000L

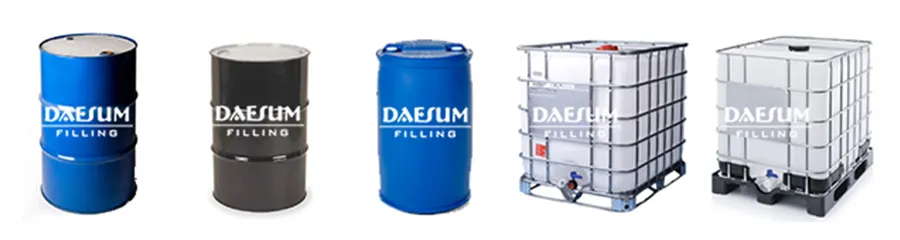

- Container type: plastic/steel drum, IBC tote
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Number of filling stations: 1-2
- Max. weighing capacity: 1500kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: length is customized according to site layout, standard depth approx. 3m, height not exceeding 4m
- Automatic feeding: No
- Automatic bunghole positioning: Yes
- Automatic cap loosening: Yes
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: No
- Automatic palletizing/wrapping: No
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
- End-to-end automation of the entire filling process, significantly reducing labor costs.
- A single filling machine can handle multiple container types and various materials.

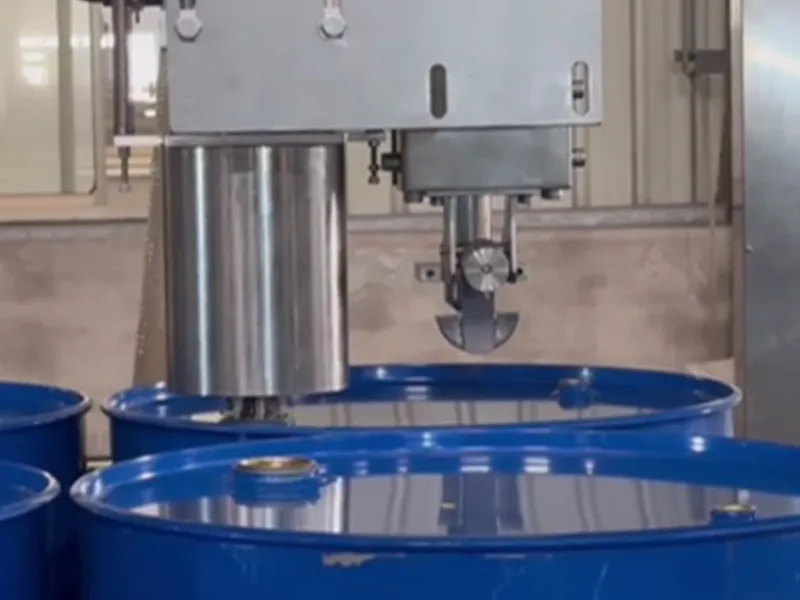

- Constant-torque cap loosening and tightening, suitable for plastic, steel, and other standard drum types.

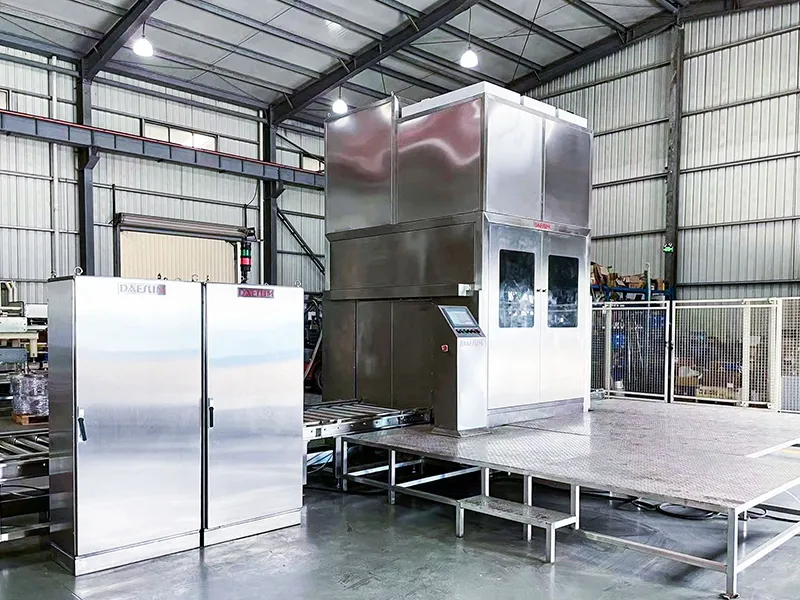

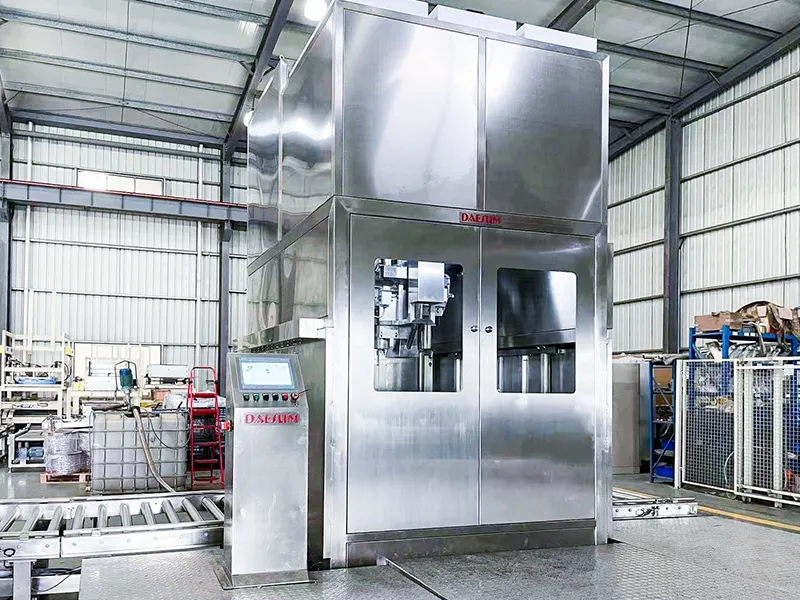

- Enclosed filling cabin design, ideal for handling toxic, hazardous, and volatile materials.
- Supports extended roller conveyors to achieve a fully automated workflow, including labeling, wrapping, and final dispatch.
Suitable for high-efficiency automated filling of lubricants, antifreeze, adhesives, cleaning agents, liquid detergents, and various industrial chemicals.
The system supports the end-to-end automated cycle of decapping, alignment, quantitative filling, and capping. It is specifically engineered to meet the stringent filling requirements for high-viscosity, toxic, hazardous, and flammable/explosive materials.
