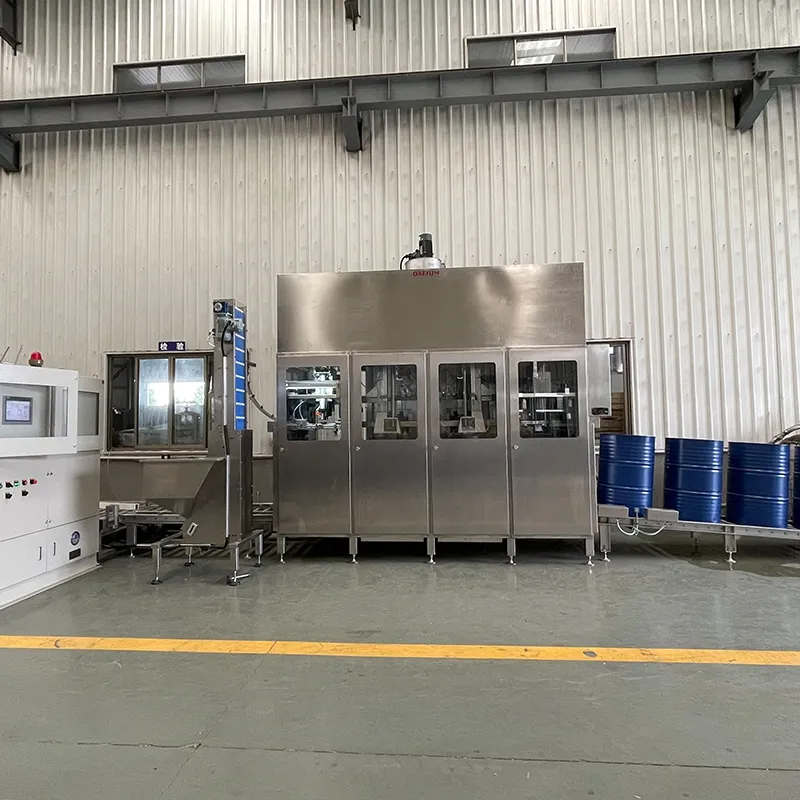

Automatic Drum Filling Machine
(Photoelectric & Vision Alignment)
- Filling range 60-220L
- Container type plastic/steel drum
This automatic drum filling machine enables a complete automated production process, including manual drum loading, automatic drum conveying, automatic alignment and decapping, automatic quantitative filling, automatic capping, automatic capping inspection, and automatic discharge of filled drums.
The filling machine integrates electromechanical alignment with vision-guided positioning technology. When an empty drum reaches the cap loosening station, the drum is automatically rotated and aligned to complete the cap loosening process. Once filled, the drum proceeds to the capping station, where a vision correction system ensures precise cap tightening before discharge.

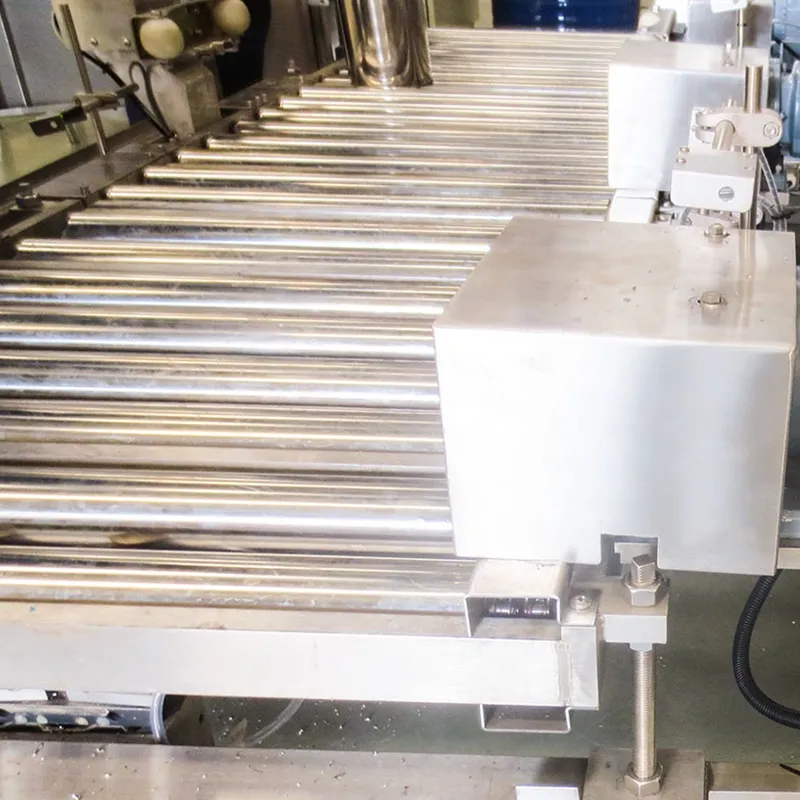

Due to its high level of automation, this drum filling machine is typically integrated with auxiliary systems such as automatic cap sorting, outer cap placement, labeling, palletising, and wrapping. The infeed and outfeed roller conveyors are designed with extended length, requiring a larger footprint. Optional configurations include explosion-proof motors, vapor extraction systems, cap sorting machines, inkjet printers, labeling machines, palletisers, and wrapping machines.
- Filling speed: 35-40 drums/hour (single station), 130-150 drums/hour (4 stations), depending on material properties and supply pressure
- Filling range: 60-220L

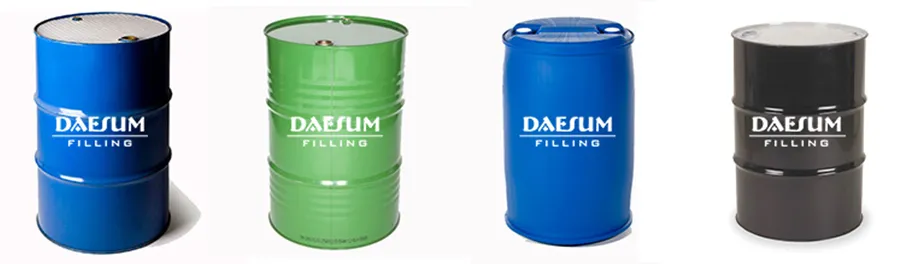

- Container type: plastic/steel drum
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Number of filling stations: 1-4
- Max. weighing capacity: 300kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: length is customized according to site layout, standard depth approx. 2m, height not exceeding 3m
- Automatic feeding: Yes
- Automatic bunghole positioning: Yes
- Automatic cap loosening: Yes
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: No
- Automatic palletizing/wrapping: No
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Labeling machine: Optional
- Cap organizing & capping machine: Optional
- Stretch wrapping machine: Optional
- High degree of automation, reducing labour requirements
- Multifunctional configuration to meet diverse production demands
- Safe and environmentally compliant operation, reducing emissions and contamination
- Suitable for large-scale production involving toxic, hazardous, volatile, flammable or explosive chemical materials

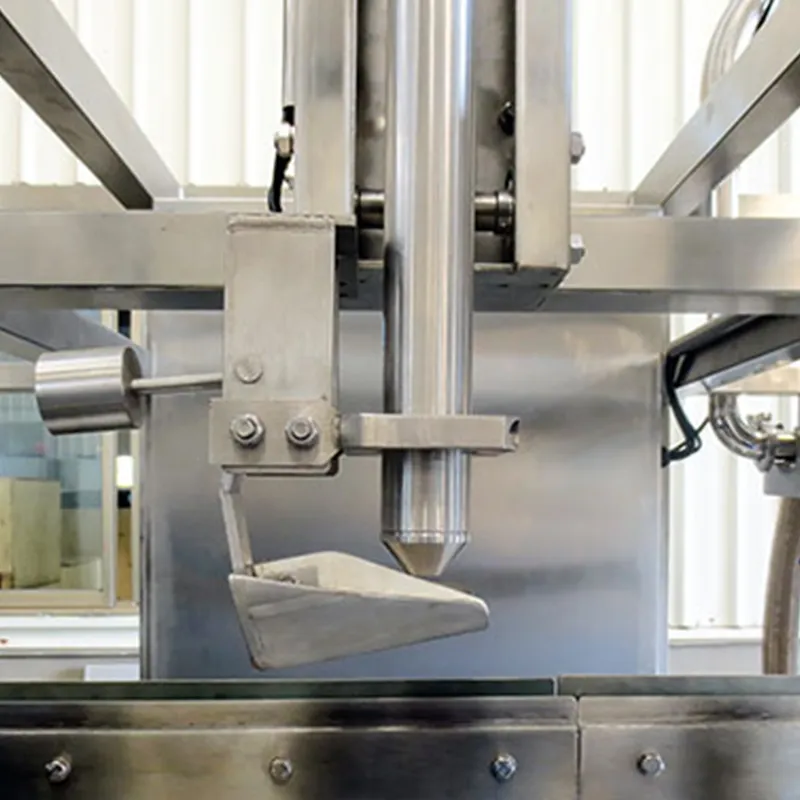

- Configurable with long lance or short lance according to product characteristics; available with 1-4 filling stations and dedicated cap loosening and capping stations
Designed for automatic alignment, automatic capping and automatic filling of lubricating oils, antifreeze, adhesives, cleaning liquids, detergents and various chemical products. The filling system is suitable for high-viscosity materials as well as toxic, hazardous, flammable or explosive liquids requiring automated and precise filling operations.
