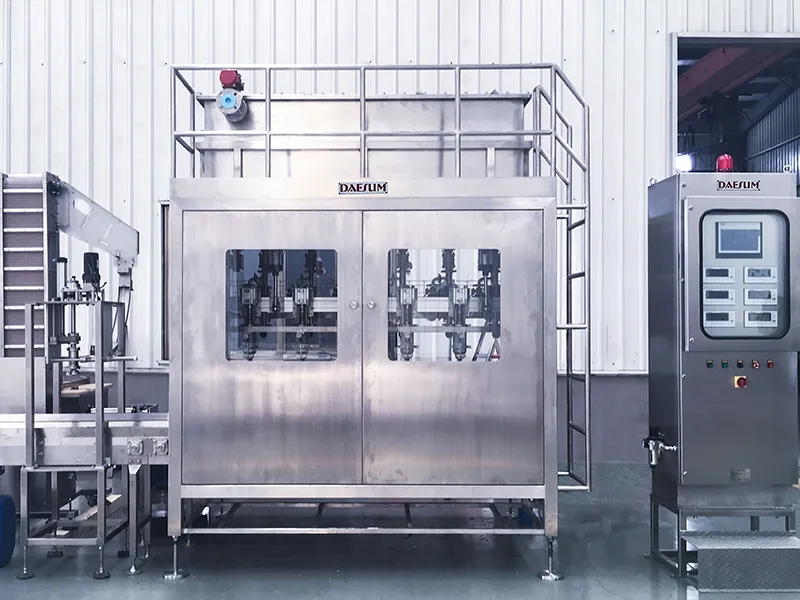

Automatic Filling Machine for Pails and Jerrycans
(100-120 containers/h)
- Filling range 5-40L
- Container type plastic/steel jerrycan

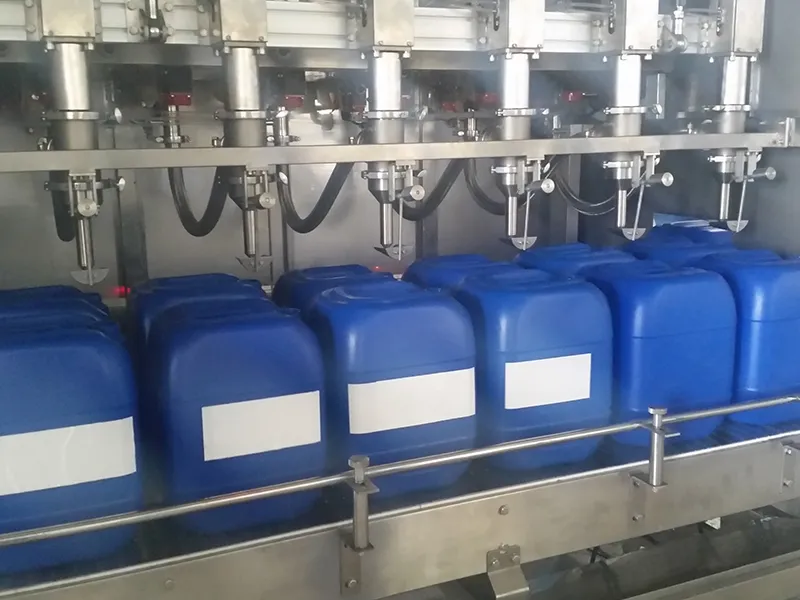

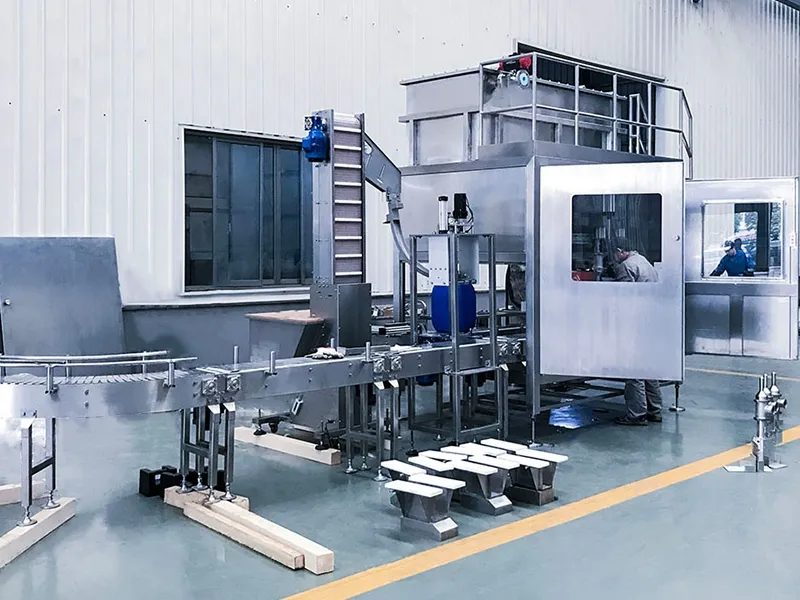

This automatic filling machine enables a fully automated production process for pails and jerrycans, including manual loading, automatic container conveying, quantitative filling, capping/lid pressing, cap/lid inspection, and discharge.

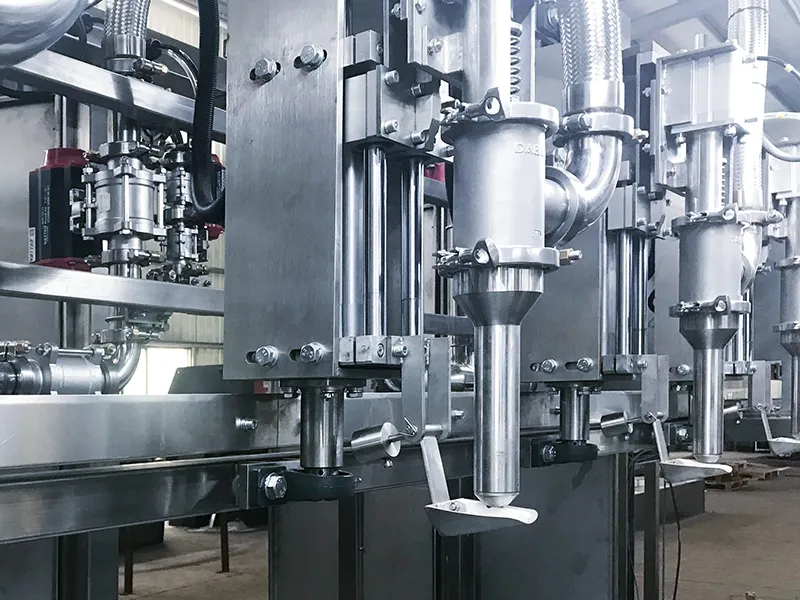

Mechanical positioning ensures accurate automatic alignment with the bunghole. The filling machine is compatible with various container types and supports filling for containers of different specifications from pails to jerrycans. An optional second filling nozzle can be integrated to enable the filling of two different products within the same production line.
Optional configurations include explosion-proof motors, fume collection hoods, exhaust ventilation systems, plastic modular belt conveyor, inkjet printers, labeling machines, pallet magazines and palletisers, allowing the filling machine system to be adapted to diverse industrial requirements.
- Filling range: 5-40L
- Container type: plastic/steel jerrycan
- Filling speed: 100-120 containers/hour (single station), 400-600 containers/hour (4-6 stations), depending on material properties and supply pressure
- Number of filling stations: 4-6

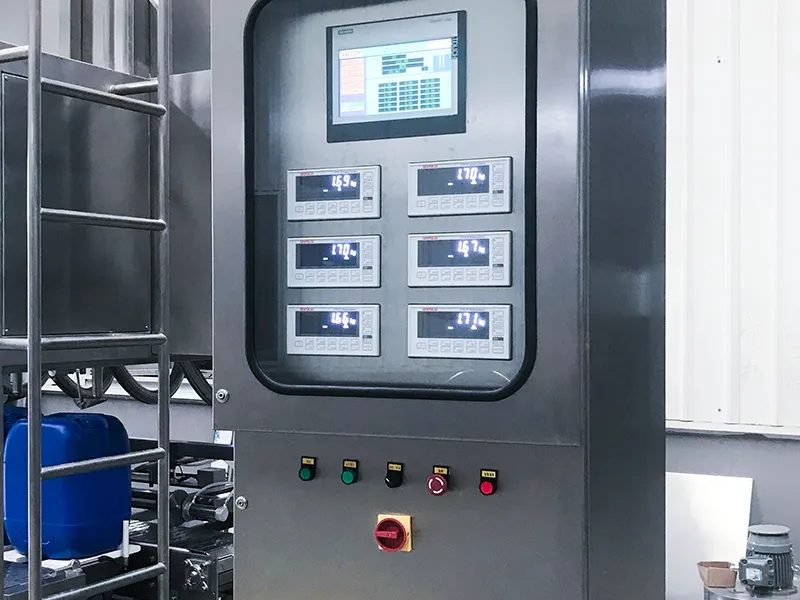

- Max. weighing capacity: 40kg
- Scale interval: 10g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Automatic feeding: Yes
- Automatic bunghole positioning: Yes
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: No
- Automatic palletizing/wrapping: No
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Pneumatic crimper: Optional
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
- High level of automation, significantly reducing labour costs

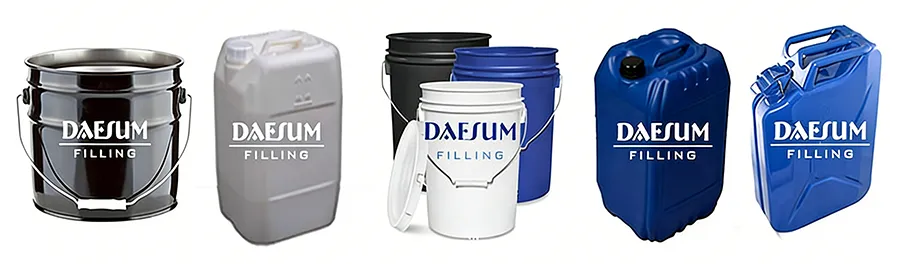

- Suitable for container sizes ranging from 5L to 40L, enabling multi-size filling on a single machine
- High production capacity, typically configured with 4-6 stations, achieving 400-600 drums per hour depending on product properties and supply pressure
- Ideal for high annual output applications involving toxic, hazardous or volatile chemical products
Suitable for lubricating oil filling, antifreeze packaging, adhesive filling, chemical product filling, coating filling and other industrial liquid applications.
