Automatic Bottle Filling Machine
- Filling range 300ml-1L (glass bottle)
- Filling speed 800-1500 bottles/hour

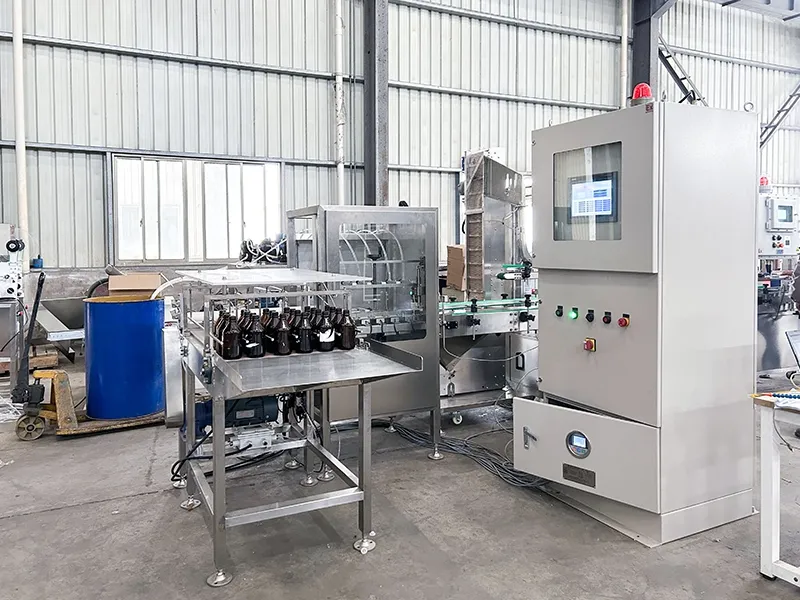

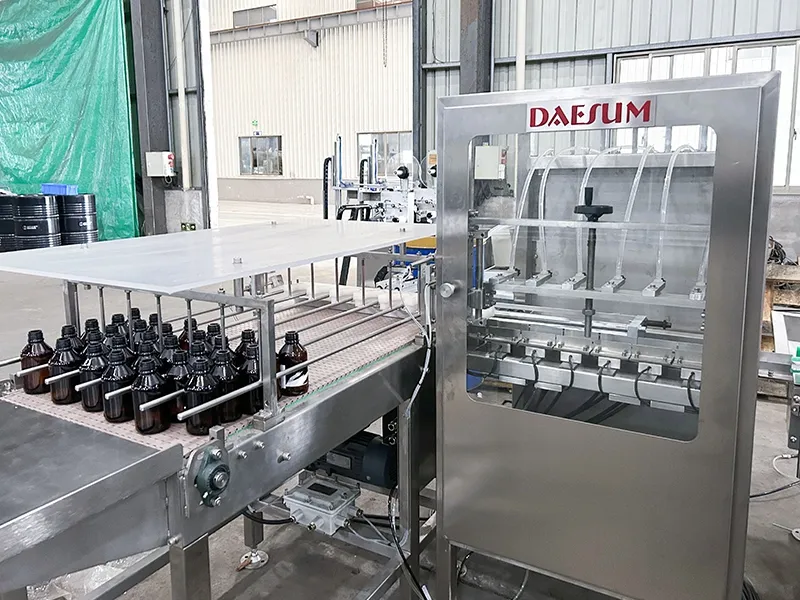

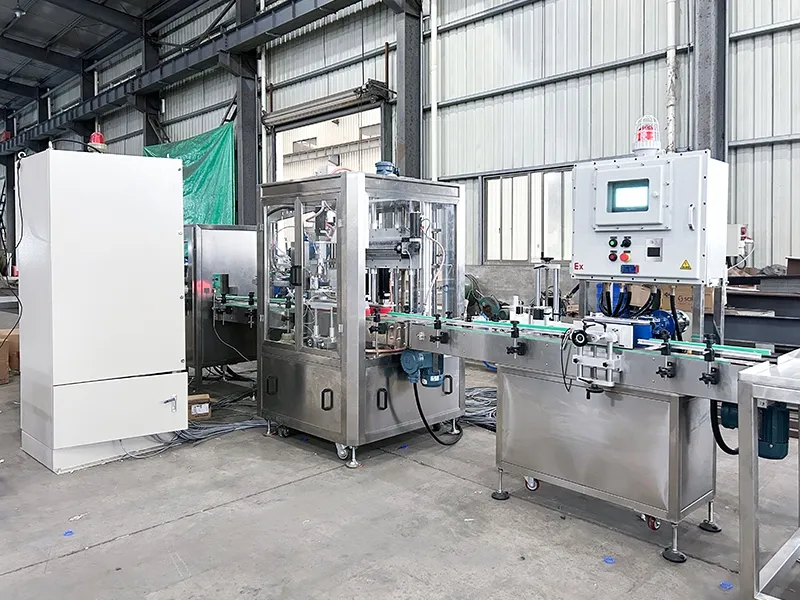

The automatic bottle filling machine is designed for high-precision filling of bottles with capacities ranging from 300ml to 1L. The bottle filler uses mechanical positioning to achieve automatic alignment according to bottle type and accommodates different container specifications.
The filling machine employs a pump-fed filling method, with a weight-controlled feedback loop that regulates pump start/stop cycles to ensure precise dosing. It is highly adaptable to various bottle shapes and can be customized with optional features such as explosion-proof motors, fume collection hoods, vapor extraction systems, plastic modular belt conveyor, inkjet printers, labeling machines, case packers, pallet magazines, and palletizers.
The bottle filling machine is suitable for high-precision filling of chemical reagents, pharmaceutical solutions, and similar materials, supporting automatic alignment, pump feeding, and weight-controlled quantitative filling throughout the process.
- Filling speed: 800-1500 bottles/hour (depending on material properties and bottle volume)
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Filling range: 300ml-1L (glass bottle)
- Number of filling stations: 6-10
- Max. weighing capacity: 5kg
- Scale interval: 1g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: height not exceeding 2m, length and width are customized according to site layout (if configured with case packing and palletizing system, height not exceeding 3.5m)
- High degree of automation, significantly reducing labor costs.
- Supports bottle sizes from 300ml to 1L, enabling multiple container types to be processed on a single system.
- Gravimetric filling ensures accurate metrology and stable dosing performance.
- Ideal for large-scale production requiring digital integration, stringent safety standards, and environmental compliance.
- Engineered for chemical reagents and liquids that are volatile, chemically unstable, highly staining, or toxic and hazardous.
The bottle filling machine is suitable for high-viscosity materials, toxic and hazardous substances, and flammable or explosive products in controlled industrial environments.
