Dry Mortar Production Line
The dry mortar production line is a fully integrated system centered on the high-efficiency mixer, encompassing material feeding, weighing, batching, mixing, and packaging modules.
Raw materials typically consist of powders, sand aggregates, and various additives. The dry mortar production line supports multiple feeding methods, including pneumatic conveying from bulk tankers, jumbo bag discharging, and 25kg bag manual feeding.

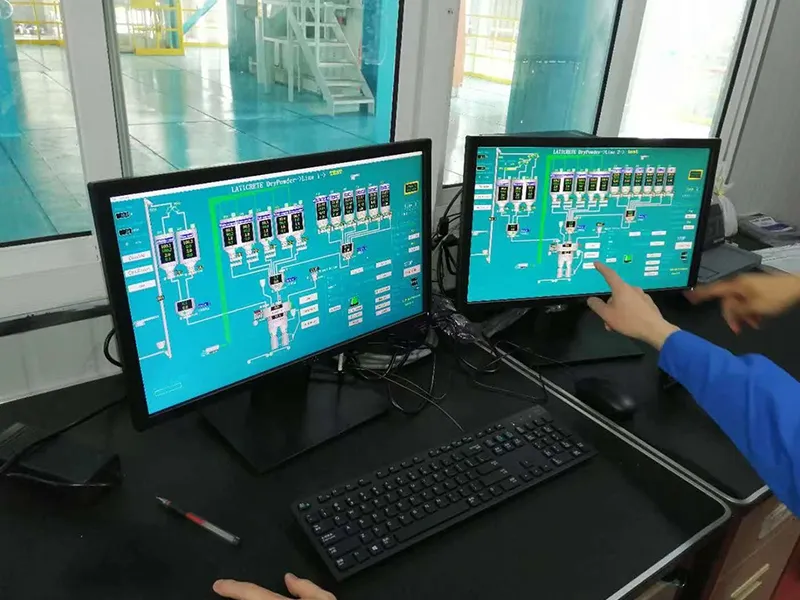

Utilizing an advanced control system, operators can manage and recall specific production recipes via the interface. The system ensures that materials are automatically batched from their respective silos in precise sequences and proportions, achieving a seamless, fully automated workflow from mixing to packaging.
To ensure an eco-friendly operation, the dry mortar production line is equipped with a comprehensive dust extraction system that minimizes emissions within the mixing tower. Furthermore, each silo features an independent dust collector to prevent material waste by recycling captured particles back into the silo, significantly improving resource efficiency.

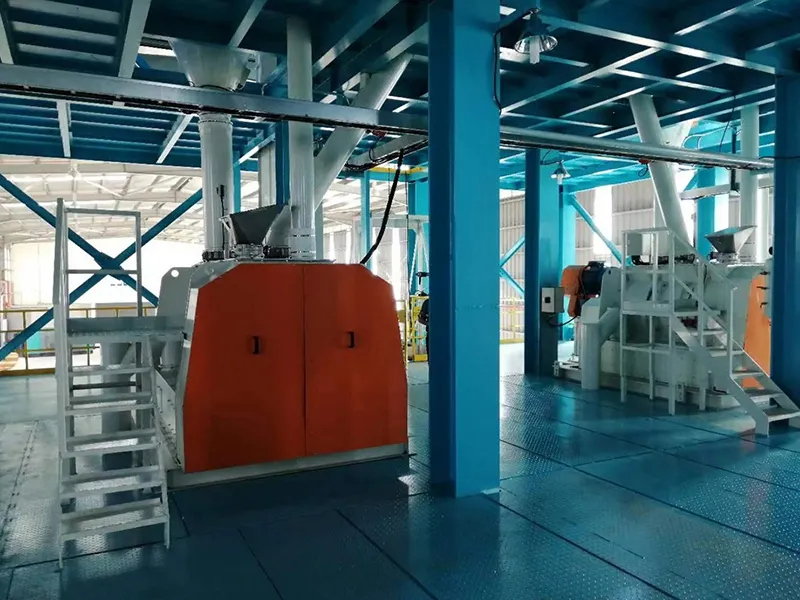

- Mixing unit: 2m³ mixers×2 units (paddle mixer/ploughshare mixer)
- Sand silo: 40m³×4 pcs
- Powder silo: 40m³×4 pcs

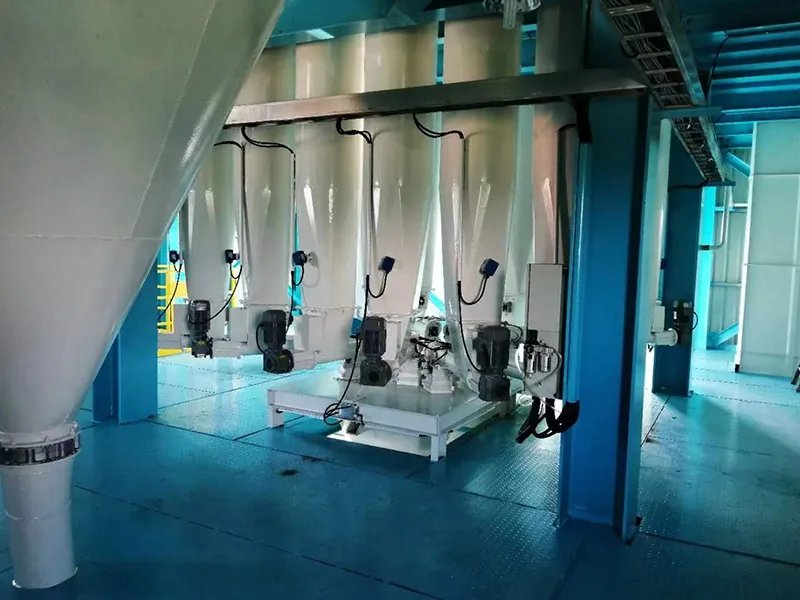

- Micro-ingredient silo: 3m³×8 pcs
- Additive silo: 0.5m³×12 pcs
- Annual output (single shift): 60,000 tons
- Annual output (per mixer): 30,000-40,000 tons
- Powder feeding: tanker truck pneumatic conveying
- Dry sand feeding: bucket elevator/pneumatic conveying vessel

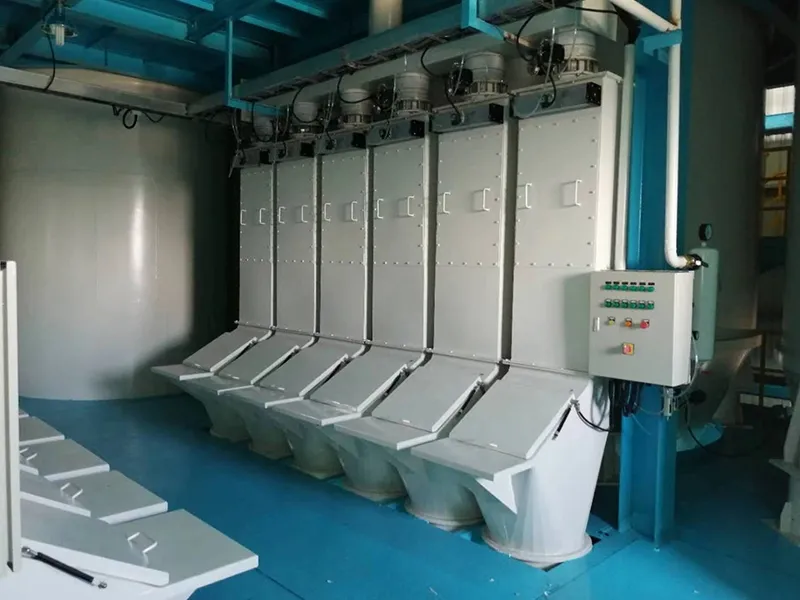

- Micro-ingredient feeding: manual bag unloading (ton bag / bulk bag)
- Additive feeding: manual bag unloading (25kg bag)
- Palletizing method: robotic palletizer (optional)
- Power: approx. 350kW (without robotic system), approx. 80kW (with robotic system)
- Mixer: WAMGROUP
- Screw conveyor: WAMGROUP
- Level indicator: WAMGROUP
- Manual/pneumatic butterfly valve: WAMGROUP
- PLC: SIEMENS S7-1500
- Computer: DELL
- Solenoid valve: AirTAC
- Low voltage electrical components: Schneider Electric
- Steel structures & silos: Daesum customized
- Packaging system: Daesum customized
- Robotic system: ABB/KAWASAKI, etc.
The dry mortar production line can be configured in two structural types:
- Vertical

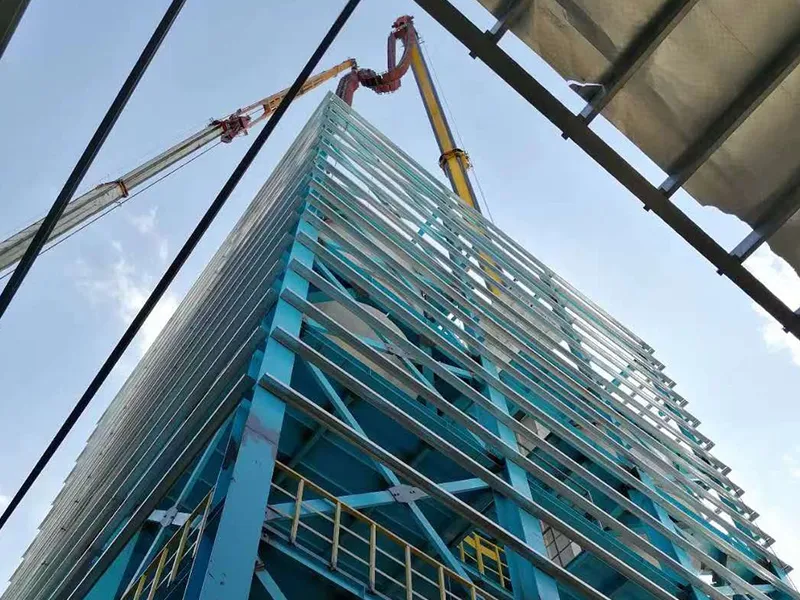

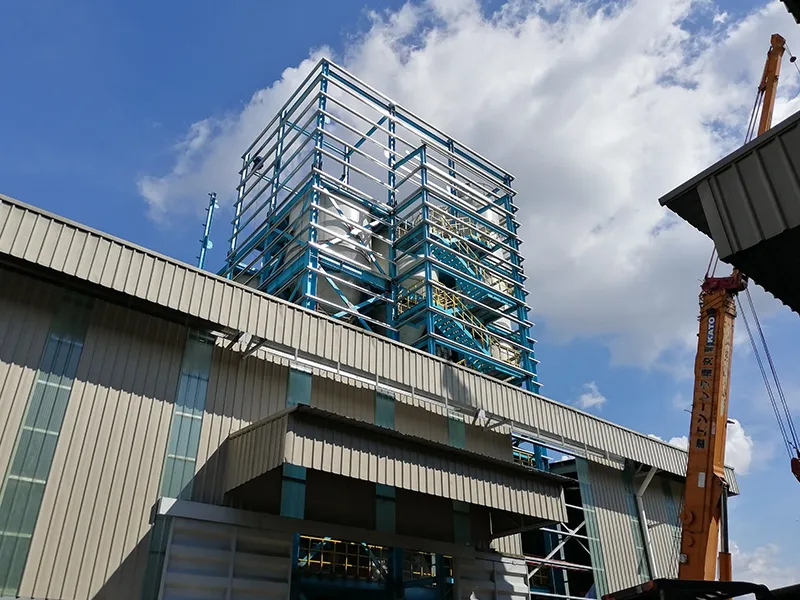

Suitable for sites with fewer height restrictions and higher land availability. The structure can reach heights exceeding 30 meters and requires reinforced concrete foundations with high load-bearing capacity. - Horizontal
Commonly used when the plant building has already been constructed. Suitable for sites with limited height but sufficient floor area. This configuration typically incorporates secondary pneumatic conveying systems for material transfer.
Saint-Gobain, Laticrete, AkzoNobel
