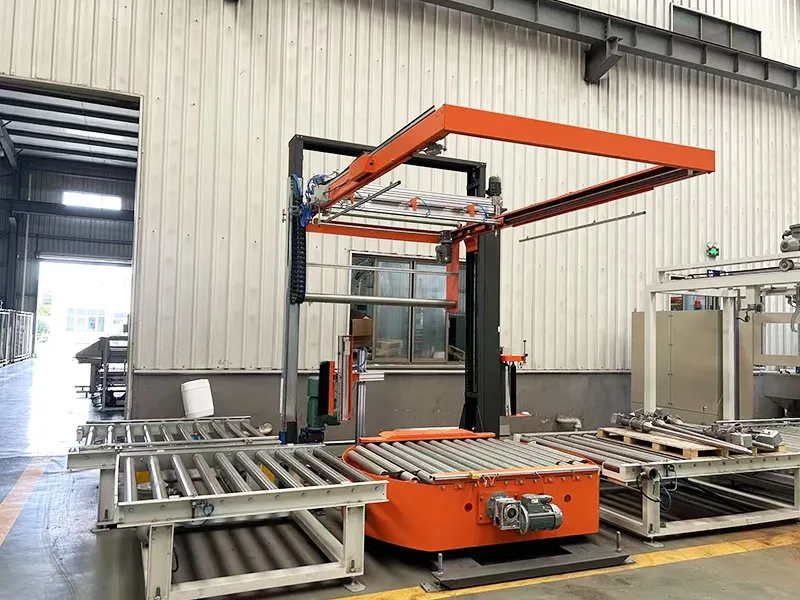

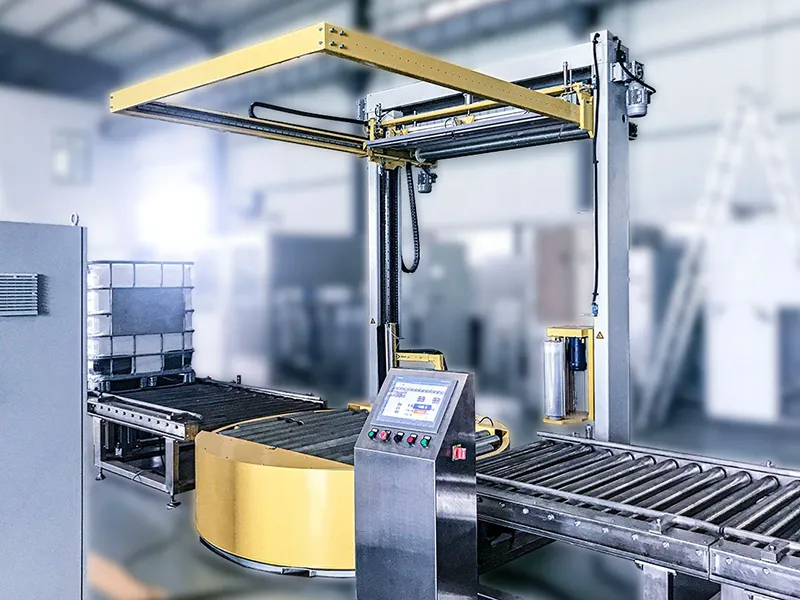

Pallet Wrapping Machine
The pallet stretch wrapping machine automatically wraps finished pallets by rotating the turntable while the stretch film carriage moves vertically to ensure full-load wrapping.
The number of pallet rotations can be set according to user requirements. An optional top film covering unit can be added to provide additional load protection.
Wrapping speed: 10-25 pallets per hour.

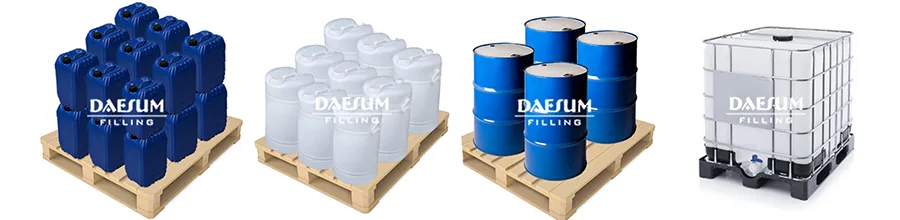

Applicable Container Types
Specifications
- Wrapping size (L×W×H): (500-1200)×(500-1200)×1800mm
- Wrapping method : Automatic pallet wrapping
- Turntable diameter: 2000mm
- Turntable load capacity: 1500kg
- Wrapping speed: 10-25 pallets/hour
- Operating temperature: -10℃ to +40℃
- Power supply: 380V (-15% to +10%)
- Air supply: 0.4-0.6MPa
Daesum is a specialized manufacturer of industrial filling equipment and integrated packaging systems. With nearly three decades of expertise, we provide turnkey filling solutions for containers including bottles, drums, pails, jerrycans and IBC totes. Our capabilities extend beyond precision filling to include seamless integration of capping, labeling and palletizing, specifically engineered for the demanding environments of the chemical, food, beverage, lubricants and other industries. At DAESUM, we are committed to delivering reliable, ISO-certified filling and packaging equipment designed for long-term durability and operational efficiency.
